5 REMOVE VALVE BODY OIL STRAINER ASSY (a) Remove the 3 bolts and oil strainer NOTICE Be careful that some fluid will come out of the oil strainer (b) Remove the Oring from the oil strainer 6 REMOVE TRANSMISSION VALVE BODY ASSY (a) Support the valve body assy and remove the 17 bolts and the valve body assy4 INSPECT SHIFT SOLENOID VALVE DSL (a) Remove the shift solenoid valve DSL (b) Measure the resistance according to the value(s) in the table below Standard resistance (c) Connect the positive () lead to the terminal of the solenoid connector, and the negative () lead to the solenoid body OK The solenoid valve makes an operating soundAutomatic Transmission Control Solenoid 1986 TOYOTA MR2 Genuine TOYOTA Part () Ships from Toyota Parts Overstock, Lakeland FL

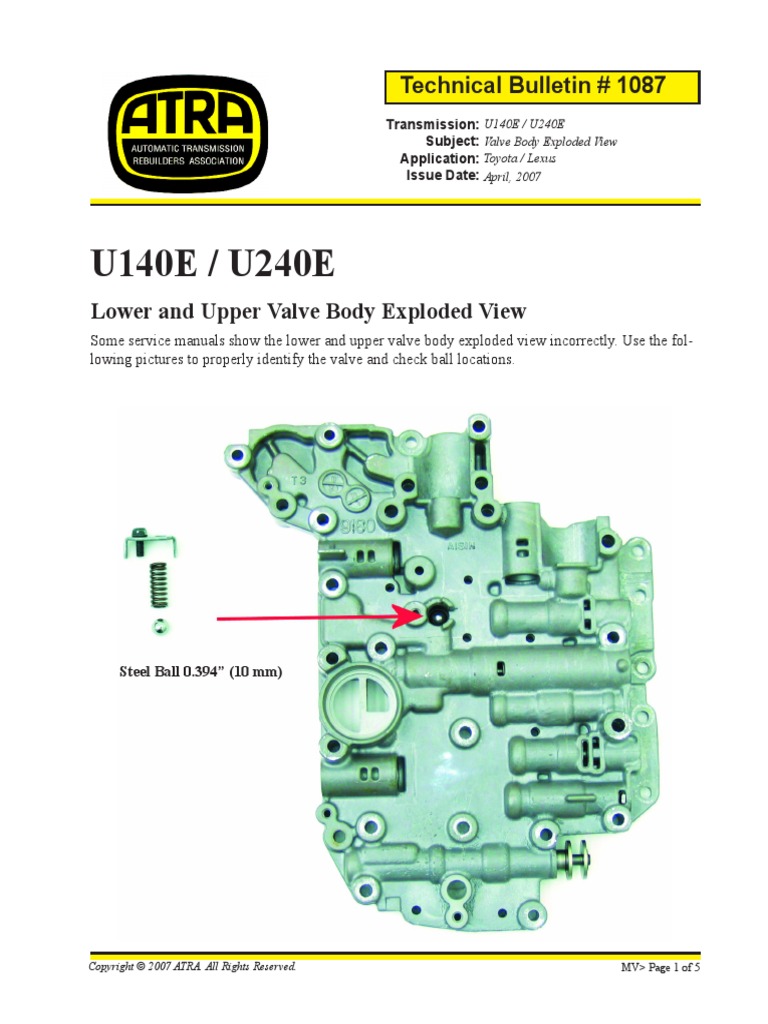

Gears Magazine Correcting Toyota U140 U240 Shift Troubles
U151e valve body diagram
U151e valve body diagram-A U140E U140F Transmission overhaul kit Toyota Camry 04 Highlander 11/0007 RAV4 4x4 8/0007 Lexus ES300 Lexus RX300 Includes bonded rubber pistons and transfer case components352 solenoid assy, clutch control, no2;
ld Transmission Valve Body End Plug Kit Sonnax 14k
Toyota 3D transmission case codes 0371 4/871/95 3D & 3DE case codes 0371L,0371LE 1/9501 Toyota 3D transmission parts Toyota transmission parts & kitsWhether you need U151E wiring diagram information, U151E transmission rebuilders tips, U151E technical information, U151E diagnostics, U151E troubleshooting help, or just answers to your U151E transmission rebuilders question, the Transmission Rebuilders Network is the place to go!We got a Toyota Camry 24L, U151E valve body Symptoms are as follows 1Thumps when switching from the second to the third gear 2When the AT is heated there are slips on all gears Vale body is on the master`s table We are disassembling and looking As always we remind you are not to rush during the disassembly, we immediately prepare
7 When disassembling a valve body, be sure to match each valve together with the corresponding spring 8 New discs for the brakes and clutches that are to be used for replacement must be soaked in ATF for at least 15 minutes before reassembly 9 AllApplications Certified Transmission offers the following resource for those interested in knowing vehicle applications for the remanufactured U151E transmission To view applications begin by selecting the vehicle manufacturer listed below Reset Search Lexus ToyotaRostra Automatic Transmission Valve Body $ 267 99 $ Refundable Core Deposit Part # SKU # LimitedLifetime Warranty check if this fits your vehicle
Valve body to case torque 95 inch lbs Valve Body Pro The leader in remanufactured valve bodies All valve bodies are run through a series of shift cycles at operating temperature, then precisely calibrated using stateoftheart valve body test equipment to verify proper operation of the pressure/control circuitsTen (10) Pcs 375" See More Info U240E / U241E Steel Module Mfg Retail $105 Cost From Us $7700 You Save $3195 Complete Steel Module 27pcs See More InfoJul 01, 15 · U151E check ball diagram 06 toyota sienna Answered by a verified Transmission Mechanic We use cookies to give you the best possible experience on our website If the valve body is giving that much problem it may be best to get another valve body assembly and replace it It may be near impossible to track down and individual valve
Valve Body Repair U150e U151e U250e Toyota Camry Rav4 Highlander Lexus Es250 Es300 Rx330 Rx350
Automatic Transaxle Assy U151e U151f Highlander Club
Body Stator D C E B 774 274 276 796 273 730 690 281 712 9 596 281 2 290* 077 292 847 2 291 293* 076 181 211 177 554 Forward Drum 999 438 436 250 251 339 338 967 977 3 134 114 Low / Rev Clutch 567 991 Linkage 410 992 446 428 740 Accum 945 C3 Accum C1 Rev Accum 010 300 765 Valve Body 786 9 135 379 779 778 999 423 422 VB PartsLOWER VALVE BODY LEGEND 1 B2 Switch Valve Retainer 2 B2 Switch Valve Boost Sleeve 3 B2 Switch Valve Boost Valve 4 B2 Switch Valve Spring 5 B2 Switch Valve 6 B2 Switch Valve Plug 7 45 Shift Valve Retainer 8 45 Shift Valve Bore Plug 9 45 Shift Valve Spring 10 45 Shift Valve 11 45 Shift Valve PlugATSG is a technical support service specifically for the Automatic Transmission Industry We offer a Technical Hotline, Books, Software, Bulletins, Wiring Diagrams, Seminars, and Technical Courses to the Automatic Transmission Professional
Gears Magazine Correcting Toyota U150 U250 Shift Troubles
D2q1ebiag300ih Cloudfront Net Uploads Part Instructions 3048 U151e U250e Zip In Pdf V
May 06, · Toyota U250E Transmission Repair Manual PDF free online U250E is a 5speed Automatic Transaxle Applications 05–09 Camry (4 cyl) 06–09 Solara (4 cyl)Solenoid assy, clutch control, no1;Connect transmission wire 8 INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB−ASSY Install the 2 magnets in the oil pan Apply seal packing or equivalent to the 18 bolts Seal packing THREE BOND 2430 or equivalent Install the oil pan and a new gasket with the 18 bolts to the transaxle case Torque 78 N·m (80 kgf·cm, 69 in·lbf)
Sonnax Toyota Lexus U140e F U240e U241e Valve Body Layout
Http Www Abtomat Ru Img Cat U151e U250e Zip Pdf
U150e, u151e, u250e u340e u341e toyota automatic transmission selection toyota automatic transmission parts 4 runner 1904 a340e toyota '4 runner'automatic 'a340e' transmission parts 4 runner 1991 a44d toyota '4 runner'automatic 'a44d' transmission parts 4Valve Body & Oil Strainer (Atm) (0405 U151E,U151F (0504 )MNH1#) Diagram Toyota ALPHARD/ VELLFIRE Year 05 08 Sales region Japan Frame MNH15 grade MS ENGINE 1MZFE Model Alphard I From 0405 To 0408 Gear Shift Type 5FC Seating Capacity 08S Vehicle Model Alphard G/VAlways examine them for wearing or sticking, to avoid slipping or binding shifts
Http Www Abtomat Ru Img Cat U151e U250e Zip Pdf
Http Www Atra Com Bulletins 09 Aug 08 09 Pdf
Aug 12, 09 · When disassembling a valve body, be sure to match each valve together with the corresponding spring 8 New discs for the brakes and clutches that are to be used for replacement must be soaked in ATF for at least 15 minutes before reassembly 9 All oil seal rings, clutch discs, clutch plates, rotating parts, and sliding surfaces should be coatedValve Body Pro provides you with complete peaceofmind Our staff of veteran transmission people allows us to provide unparalleled pre and postproduct support With a combined experience of over 75 years, our expert support techs provide sound advice and reliable answers to your transmission related questionsAlways examine them for wearing or sticking, to avoid slipping or binding shifts
Toyota Sienna Service Manual Removal Valve Body Assembly U151e Automatic Transaxle
Toyota U150 U151 U250 Valve Body 01 03 1 Year Warranty Updated Tested Ebay
U151e valve body rebuild manual U151e Valve Body Rebuild Manual U151E VALVE BODY PDF PDF Able 46re Valve Body Manual read online and download pdf ebook downloadable 46re valve 4l30e valve body diagram Th180(md3) 3l30 4l30e (ml4) 4 Speed Th180c(md2) W/l/u 19 ill description qty year part no reference no th180(md3) 3l30 Manual Valve Body550A Pump Body 98ON 1 BW55BUS01 THRUST WASHERS & BEARINGS ELECTRICAL COMPONENTS 700L Line Pressure Control Solenoid (SLT) (White Connector VALVE BODY PARTS 750Lalve Body Toyota/Lexus New OEM V (VIN Required) 98ON 1 U140VBxx 750Lalve Body Remanufactured V (Without Central Lube Hole)TRANSAXLE Turboninjas com Toyota A540 A541 Natpro 01 Camry Transmission Solenoid Diagram carwallps com What is the valve body check ball location for a 03 Toyota Camry Transmission valve body assy U151E Toyota cars Parts and spares for old Toyotas Automatic Transmission Valve Body removal 4L60E Shift 1998 Altima Transmission Valve Body
Valve Body Repair U150e U151e U250e Toyota Camry Rav4 Highlander Lexus Es250 Es300 Rx330 Rx350
Toyota U150 U151 U250 Valve Body 01 03 1 Year Warranty Updated Tested Ebay
Sep 26, 15 · Rebuilding My '13 Pin' (toyota U151E) Transmission Car Talk (2) Nairaland I really did not pay attention to the code,just rememba D guy was showing me a diagram of the valve body with a red line pointing to where the fault is74 A C TOYOTA U150, U151 01ON, U250 05ON 5 SPEED FWD & AWD (Electronic Control) RevisionTransmission repair manuals U660E, U760E, diagrams, guides, tips and free download PDF instructions Fluid capacity and type, valve body and solenoids charts
Toyota U151e U250e Vacuum Testing Transmission Digest
Valvebody Toyota U140 240
YEARS QTY Kit KM Master Kit with Pistons & Filter U150E, U150F, U151E *Does not contain Transfer Case Kit or Overdrive Direct Bonded Piston 02ONProblems with electrical parts in U250 and U151 gearboxes are often triggered by issues with the valve bodyThe valve body U250 (04) frequently could not maintain set parameters, old (massive) solenoids couldn't cope with tasks, therefore the valve body wears rapidly In 05, the valve body was updated after replacement of solenoidsU151EU250E ziP KiT Installation & Testing Booklet U151EU250EZIPBooklet ©12 Sonnax Industries, Inc Page 2 • • F • wwwsonnaxcom # # zip Kit instructions 1 Valve Body Removal from Case Remove the 19 bolts indicated (Figure 1) 2 Valve Body Disassembly Step 1 Note See Figure 2 for
Transmission Parts Online U150 U150 Transmission Parts
Valve Body Repair U150e U151e U250e Toyota Camry Rav4 Highlander Lexus Es250 Es300 Rx330 Rx350
BODY, CHECK BALL Part Number Supersession (s) Fits COROLLA (1993 10) OEM 4 people have looked at this part recently Ships Fast From Lakeland, FL Diagrams and Kits What This FitsDownload Free U151e Valve Body Rebuild Manual U151e Valve Body Rebuild Manual U151E, U151F, U250E Remanufactured Valve Body ('04–'16) Part Nos TOY181 TOY181RMN NOTE Save your existing manual valve for reuse with our remanufactured valve body Valve Body Installation Tips 1 Page 4/6Jan 01, 13 · Toyota/Lexus U151E, U151F, U250E Solenoid Identification The four linear solenoids look nearly identical when installed in the valve body Reference the porting differences between SL1, SLT and SL2/SL3 (identical) for correct identification Name
April 18 Issue Transmission Digest
D2q1ebiag300ih Cloudfront Net Uploads Part Instructions 3048 U151e U250e Zip In Pdf V

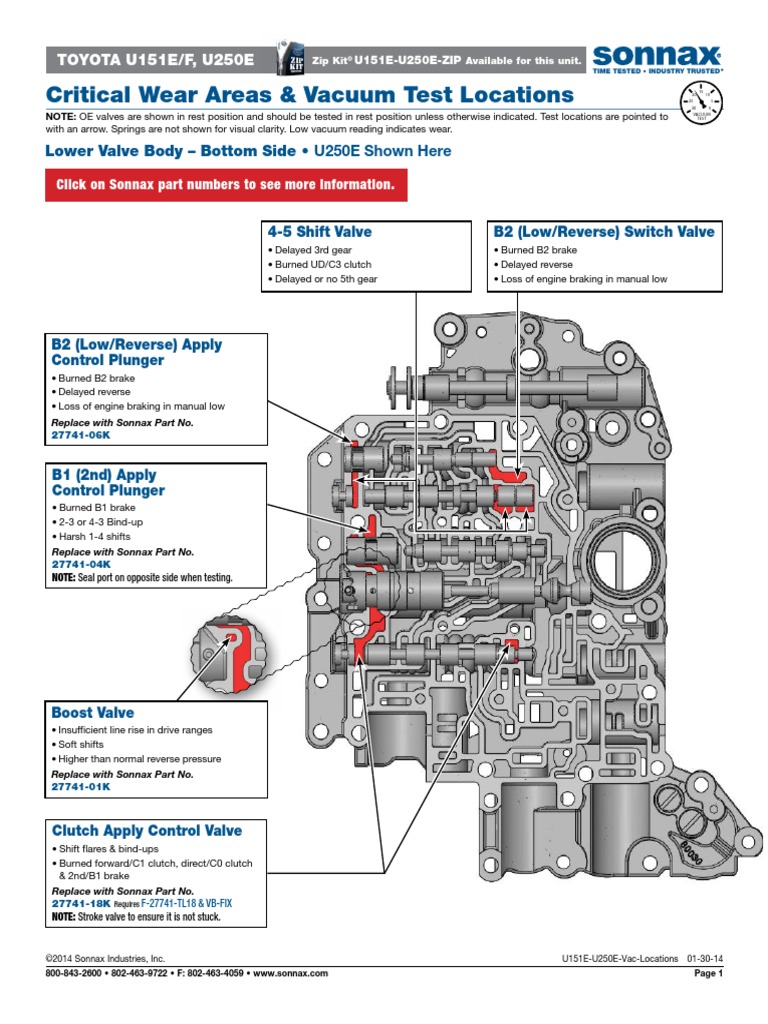

May 26, 17 · Another valve that commonly causes slips and binds is the clutch apply control valve (figure 7) Look for the solenoid modulator valve and the clutch control valve in the lower valve body Both of these valves can wear;Toyota Sienna Service Manual / U151e automatic transaxle / Valve body assembly / Removal 1 Remove engine under cover no1 2 Disconnect cable from negative battery terminal 3 Drain automatic transaxle fluid (see page ax131) 4 Remove automatic transaxle oil pan subassemblyBody Stator D C E B Forward Drum Low / Rev Clutch Linkage Valve Body Park Pawl Case U150E / U151E / U250E FWD 5 Speed F 11 12 10 100 102 30 31 131 Planet Hub Wiring Harness Accumulators Accumulators 55 54 1 SL1 SLT SL3 SR DSL SL2 S4 80 86 84 81 85 150 13 Differential 1381 1310 42
